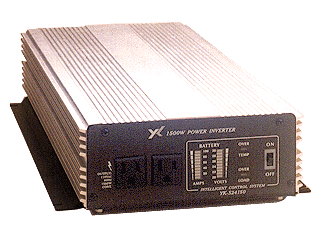

YK-S12150/E, YK-S24150/E (1500Watts Modified Sine Wave Inverter )

Type

spec.

YK-S12150/E
YK-S24150/E
1500W

Output Wave form

Modified sine wave

Output Voltage 110V

220V

115VAC rms
230VAC rms

Regulation

-5% ~ +5%

DC input Voltage 12V

24V

10 ~ 15V
20 ~ 30V

Low battery alarm 12V

24V

10.7V
21.5V

Low battery shut-down 12V

24V

10V
20V

Efficiency

85~90%

Frequency +-1% 115V

230V

60Hz
50Hz

No load draw 12V
24V

1100mA
700mA

Surge capability

2250W

Over thermal protection

Yes

Cooling fan

Yes

Over load protection

Yes

Input shut circuit protect

Yes

Dimension (L x W x H)

480 x 240x 90mm

Net weight

5.5kgs

Car cigarette lighter adapter

No

Remote control

Yes

 Order Sheet
