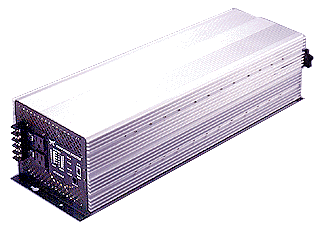

YK-S12500/E, YK-S24500/E (5000Watts Modified Sine Wave Inverter )

Type

spec.

YK-S12500/E
YK-S24500/E
5000W

Output Wave form

Modified sine wave

Output Voltage 110V

220V

115VAC rms
230VAC rms

Regulation

-5% ~ +5%

DC input Voltage 12V

24V

10 ~ 15V
20 ~ 30V

Low battery alarm 12V

24V

10.7V
21.5V

Low battery shut-down 12V

24V

10V
20V

Efficiency

85~90%

Frequency +-1% 115V

230V

60Hz
50Hz

No load draw 12V
24V

2.5A/5A
1.25A/2.5A

Surge capability

7000W

Over thermal protection

Yes

Cooling fan

Yes

Over load protection

Yes

Input shut circuit protect

Yes

Dimension (L x W x H)

690 x 240x 180mm

Net weight

15kgs

Car cigarette lighter adapter

No

Remote control

Yes

 Order Sheet
